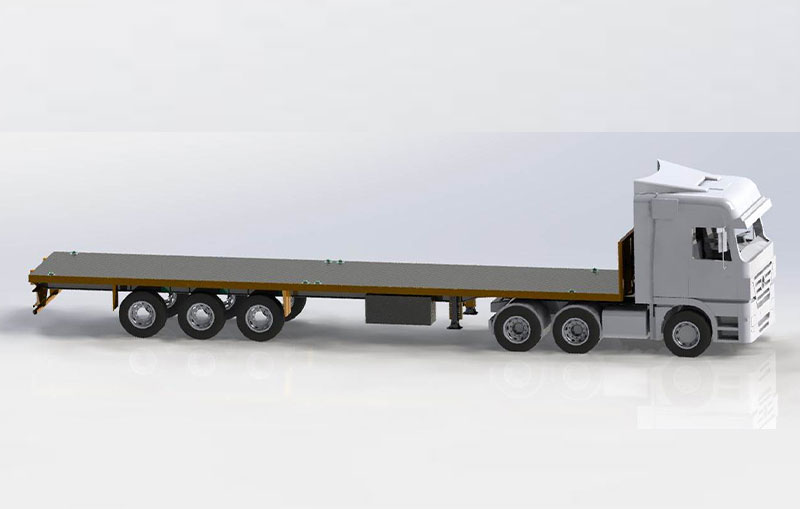

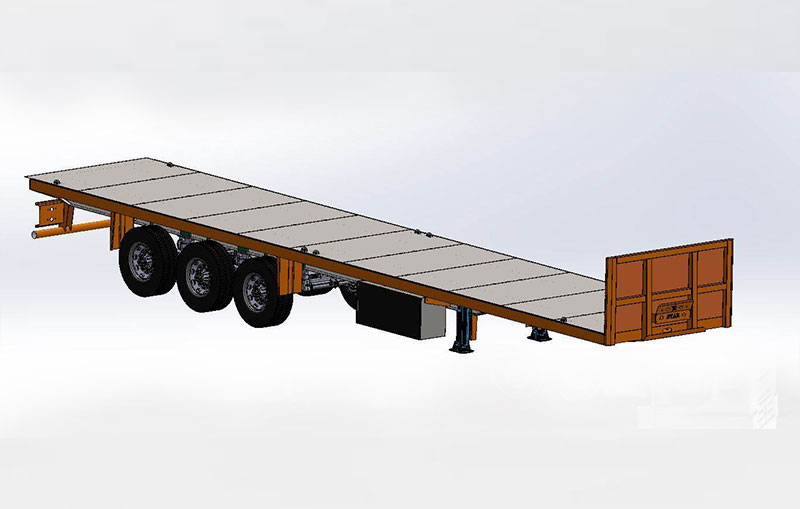

13.6 mt Flatbed Semi Trailer – Container Carrier
| Overall Length | 13.590 mm |
| Overall Height | 2560 mm |
| Overall Width | 2500 mm |
| Fifth Wheel Height | 1240 mm |
| Payload | 40 ton |
| Cross Beams | IPN 100 |
| Loading Platform Frame | UPN 160 |
| Floor Plate of Platform | 6 mm Patterned Sheet Metal |
| Chasis Flat Bar Material and Thickness | 120x14 mm hot rolled steel |
| Chasis Sheet Metal Thickness | 6 mm ST-52 Sheet Metal |
| Front Wall | 3 mm bended sheet metal with box supported. |
| Cross Members Between Chassis | 6 mm bended sheet metal |
| Container Lock | 12 pcs lock including, Suitable for 2x20’ , 1x40’ or 1x20’ on the middle |
| Landing Legs | OMS brand 25 ton dinamic, 50 ton static load capacity |
| Electrical system | 2x7 pin, lighting set is used.Turkısh brand 2 set 7-function rear taillights (horned), 2 pcs white led front lamps, 4 x 2 yellow led side lamps |
| Air System | Turkish Brand |
| Compressor | Diesel Compressor including (Electrical is an option) |
| Brake System | Normal brake |
| Axles | 3 axle Sertel Brand |
| Standard Accessories | Storage cabinet , crom water tank, plastic mudguards, chock |
| Paint Process | After welding process the sandblast is applied on the trailer. After sandblasting, 2 primer paints and 1 final acrylic paint is applied. |
| Final Paint | The color can be choosen by customer. If requested any logo or digits can be applied. |
