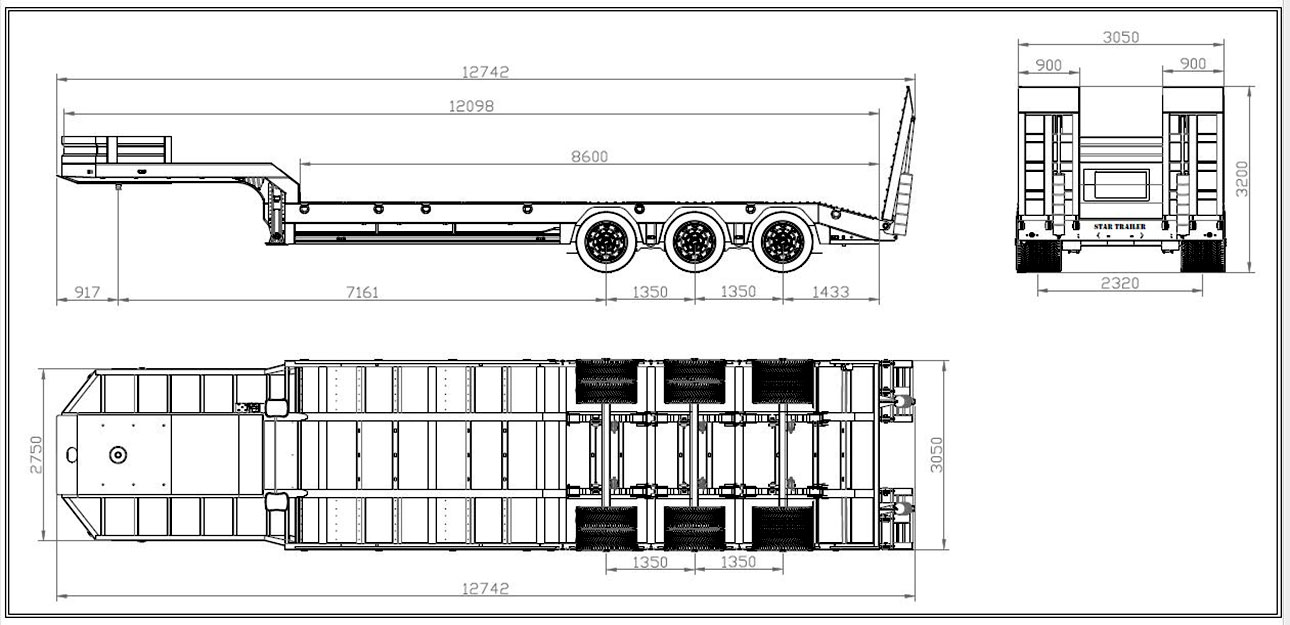

3 Axle Lowbed Semi Trailer
| Overall Length | 12.742 mm |
| Overall Height | 3200 mm |
| Overall Width | 3050 mm (+250 extension each side) |
| Fifth Wheel Height | 1340 mm |
| Payload | 60 Ton |
| Cross Transvers | 8 mm bended sheet metal |
| Floor Plate of Loading Area | 8 mm patterned sheet metal |
| Chasis Flat Bar Material and Thickness | 180x18 mm hot rolled steel |
| Chasis Sheet Metal Thickness | 12 mm ST-52 sheet Metal (Reinforced chasis details) |
| Truck Connection Plate | 12 mm sheet metal |
| King Pin | 3,5’’ |
| Lift System | 2 Nos hydrolic cylinder for ramp |
| Landing Legs | 25 ton dinamic, 50 ton static load capacity |
| Electrical system | 2x7 pin, lighting set is used. Turkısh brand 2 set 7-function rear taillights (horned), 2 pcs white led front lamps, 4 x 2 yellow led side lamps |
| Air System | Turkish Brand |
| Brake System | Normal brake system |
| Axles | 3 axle double tyre 16 ton capacity with Leaf Spring Suspension |
| Standard Accessories | Storage cabinet, crom water tank, plastic mudguards, chock |
| Paint Process | After welding process the sandblast is applied on the trailer. After sandblasting, 2 primer paints and 1 final acrylic paint is applied. |
| Final Paint | The color can be choosen by customer. If requested any logo or digits can be applied. |
The above-mentioned features can be changed in line with the customer's needs and wishes. If the customer specifies the features of the product they need, we can provide the exact value of the product they are looking for.
