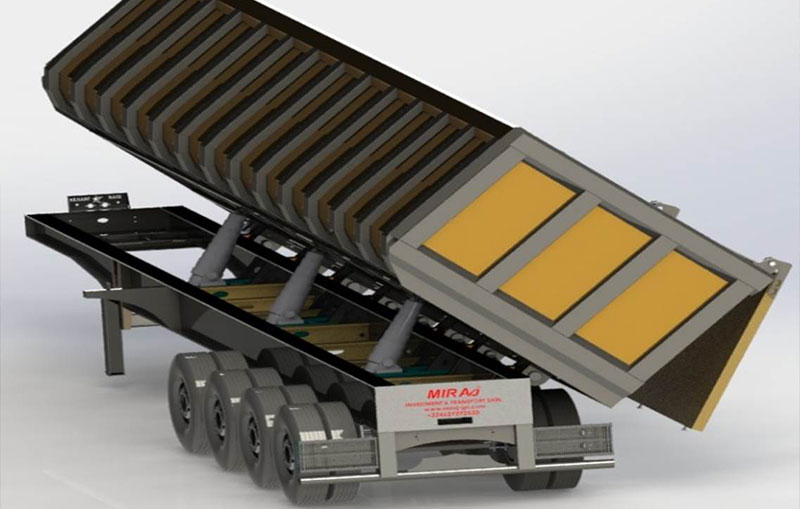

Side Dump Semi Trailer
| Overall Length | 11.450 mm |
| Overall Height | 3860 mm |
| Overall Width | 2870 mm |
| Fifth Wheel Height | 1380 mm |
| Payload | 105 ton |
| Chasis Flat Bar Material and Thickness | 180x20 mm hot rolled steel |
| Chasis Sheet Metal Thickness | 10 mm ST-52 sheet Metal (Reinforced chasis details) |
| Cross Members Between Chassis | 10 mm bended sheet metal |
| Truck Connection Plate | 15 mm sheet metal |
| Side Walls of the Box | 6 mm St-52 sheet metal |
| Support of the Side Walls | 4 mm bended sheet metal |
| Floor Plate of the Box | 8 mm St- 52 sheet metal |
| King Pin | 3,5’’ |
| Lift System | 3 Nos lift with 40 ton capacity each. |
| Dump angle | 35° |
| Landing Legs | OMS brand 25 ton dinamic, 50 ton static load capacity |
| Electrical system | 2x7 pin, lighting set is used. Turkısh brand 2 set 7-function rear taillights (horned), 2 pcs white led front lamps, 4 x 2 yellow led side lamps |
| Air System | Turkish Brand |
| Brake System | Normal brake |
| Axles | 4 axle double tyre 18 ton capacity |
| Standard Accessories | Storage cabinet, crom water tank, plastic mudguards, chock |
| Paint Process | After welding process the sandblast is applied on the trailer. After sandblasting, 2 primer paints and 1 final acrylic paint is applied. |
| Final Paint | The color can be choosen by customer. If requested any logo or digits can be applied. |
The above-mentioned features can be changed in line with the customer's needs and wishes. If the customer specifies the features of the product they need, we can provide the exact value of the product they are looking for.
